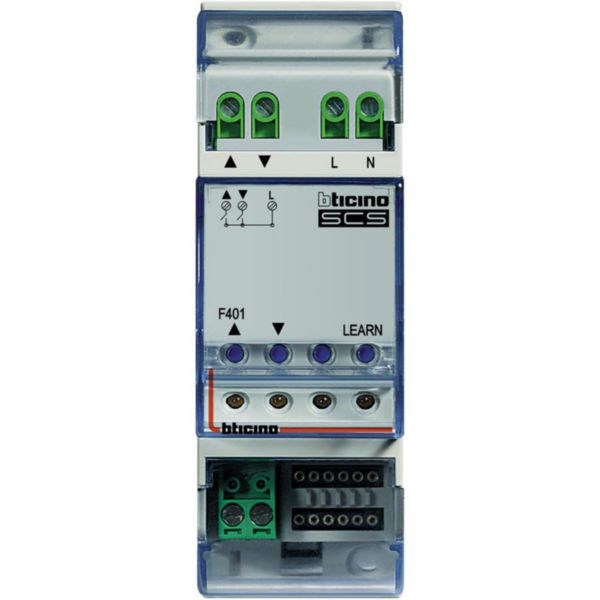

2 module flush mounted actuator with 2 internal relays and 3 pushbuttons for the management of shutters.
My Home Up
BTICINO
2 module flush mounted actuator with 2 internal relays and 3 pushbuttons for the management of shutters.
REF. F401
EAN oznaka.
8005543469699
Deli
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό
Tehnične značilnosti
| Bus system KNX | No |
|---|---|
| Bus system KNX-RF (Radio Frequency) | No |
| Bus system radio frequency | No |
| Bus system LON | No |
| Bus system Powernet | No |
| Other bus systems | Other |
| Radio frequency bidirectional | No |
| Mounting method | DRA (DIN-rail adapter) |
| With anti-theft/dismantling protection | No |
| With bus connection | Yes |
| Number of actuation points | 1 |
| Number of buttons | 3 |
| With LED indication | Yes |
| With label area | No |
| With display | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface protection | Other |
| Colour | White |
| RAL-number (similar) | 9011 |
| Transparent | No |
| With room temperature controller | No |
| With IR sensor | No |
| Degree of protection (IP) | IP20 |
| Min. depth of built-in installation box | 55 mm |
|---|---|
| Width | 36 mm |
| Height | 105 mm |
| Depth | 31 mm |
| degree of impact strength (IK) | IK04 |
| Operating / setting temperature | 0-40 °C |
| Storage temperature | -10-70 °C |
| Frequency | 0-0 Hz |
| Standby consumption | 5 mA |
| Terminal marking indication | Yes |
| Halogen free | No |
| Antimicrobial treatment | No |
| Terminals capacity | 0.5-2.5 mm² |
| Cable nature for connection | Flexible or rigid |
| Label space/information surface | No |
| Addressable | Yes |
| Connected object | No |
| Operating method | SCS |
| With voice command | Yes |
| Programmable | Yes |
| Interoperable connection Protocol | Yes |
| Connectable by Internet box | Yes |
| Product use function | Shutter management |
