Name: Auxiliary changeover switch DX³ - 6A 250V AC - 0,5 module
SKU: 406258

Auxiliary changeover switch DX³ - 6A 250V AC - 0,5 module

DX³ LEGRAND

Auxiliary changeover switch DX³ - 6A 250V AC - 0,5 module

REF. 406258 EAN oznaka. 3245064062589

Primerjaj Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό

Maximum number of auxiliaries per device: 3 signalling auxiliaries or 2 signalling auxiliaries + 1 remote tripping auxiliary

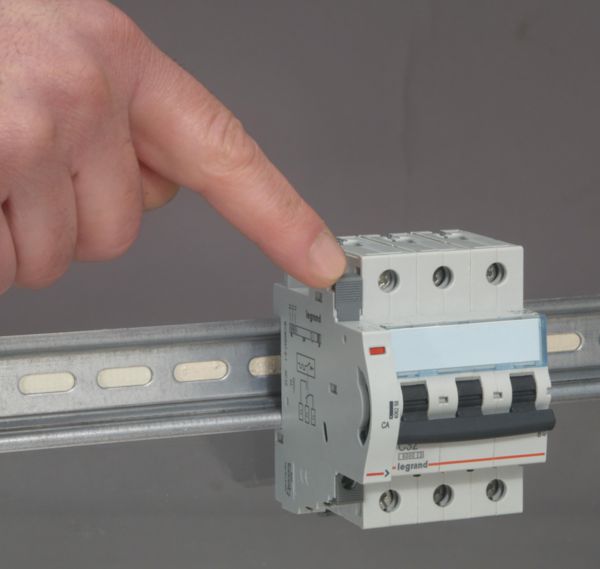

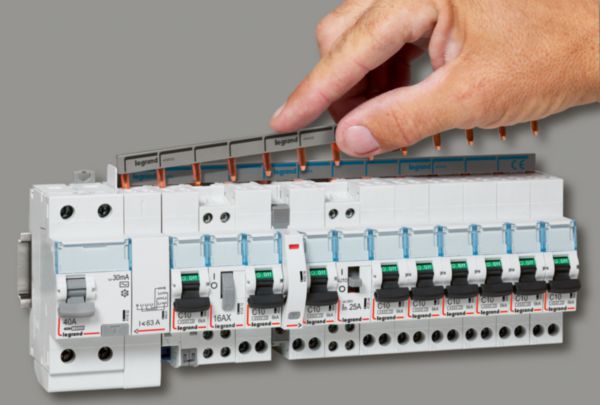

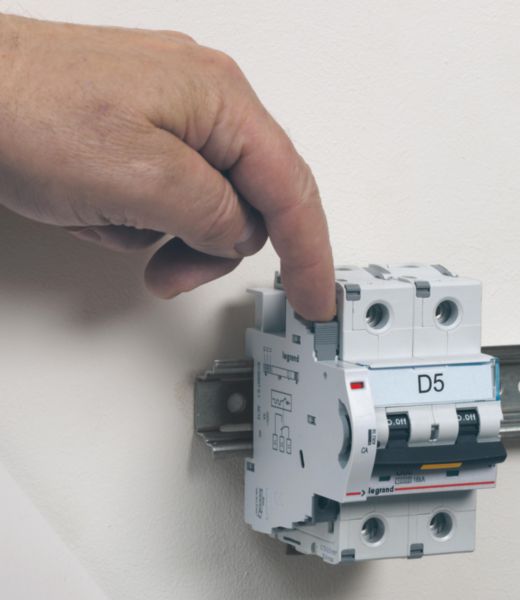

No tool required for joining together the auxiliary and the main device. Allows insertion of the supply busbar, top side.

Device fitting	Universal
Function	Auxiliary switch
Width in number of modular spacings	0.5
Number of contacts as normally open contact	0
Number of contacts as normally closed contact	0
Number of contacts as change-over contact	1
Number of fault-signal switches	0
Rated switch current	6 A

Rated voltage	240 V
Voltage type	AC/DC
With auto test for earth leakage function	No
Suitable for max. number of poles main contact unit (total)	4
Suitable for max. current main contact unit	125 A
Width	8.8 mm
Height	84.5 mm
Depth	77.7 mm

Auxiliary changeover switch DX³ - 6A 250V AC - 0,5 module
