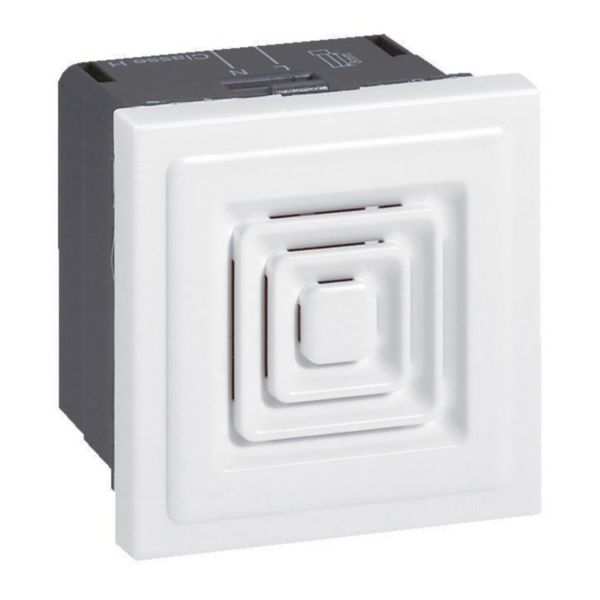

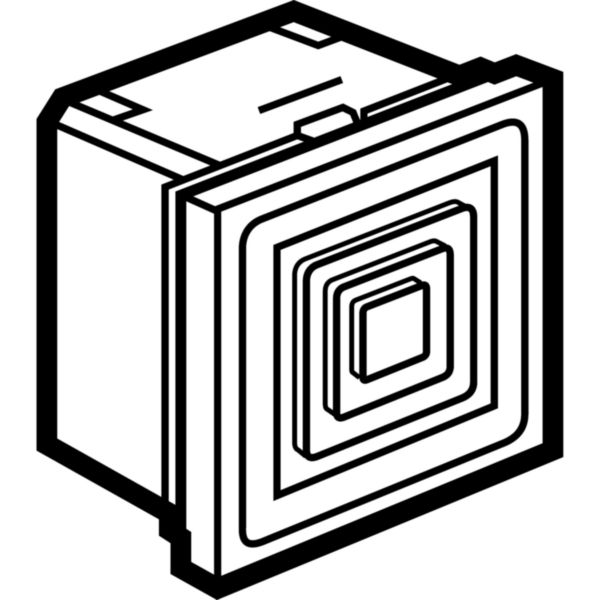

Buzzer Mosaic - 12-24-48 V DC - 2 modules

Name: Buzzer Mosaic - 12-24-48 V DC - 2 modules
SKU: 076642

Mosaic™ LEGRAND

REF. 076642 EAN oznaka. 3245060766429

Primerjaj Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό

BUS/SCS nurse call unit - corridor signalling units - Ensures that information is transferred into the corridor
Transfer of information - White - 12 - 24 - 48 V= - Consumption 5 - 9 - 17 mA - Depending on power supply - Sound level 80 dB at 1 m

Housing colour	White
Housing material	Plastic
Loudness	80 dB
Nominal voltage	12-48 V
Degree of protection (IP)	IP41
Type of current	DC
Electricity consumption	0.005-0.017 A
Built-in battery	No
Mounting method	Modular device for domestic switching devices
Number of modules (module system)	2
Width	45 mm

Height	45 mm
Depth	41 mm
degree of impact strength (IK)	IK05
Operating / setting temperature	-5-35 °C
Storage temperature	-10-70 °C
Terminal marking indication	Yes
Connection type	Screwed terminal
Terminals capacity	2.5-2.5 mm²
Contains Batteries and/or Accumulator	No
Number of ringtones	1
Connected object	No
