Connected module for motorized garage and gate control
LEGRAND

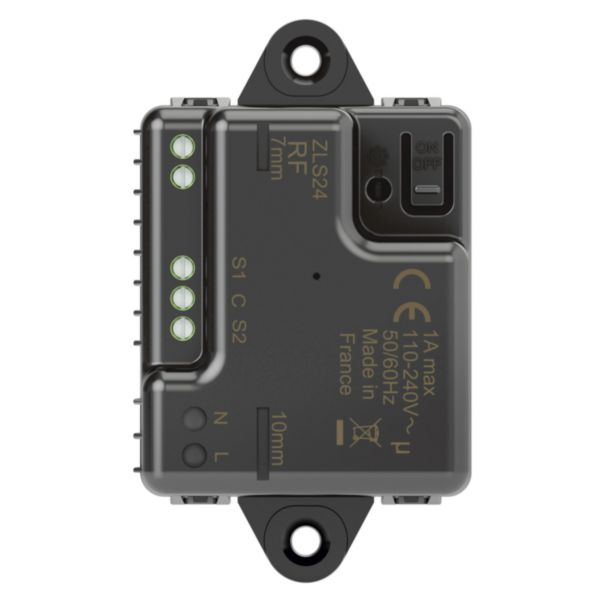

Connected module for motorized garage and gate control
REF. 067696
EAN oznaka.
3414971346727
The connected module for garage and gate enables the control of any kind of motorized garage door and gate. Allows the management using wireless controls, home+control app and voice.
Deli
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό
Tehnične značilnosti
| Bus system KNX | No |
|---|---|
| Bus system KNX-RF (Radio Frequency) | No |
| Bus system radio frequency | Yes |
| Bus system LON | No |
| Bus system Powernet | No |
| Other bus systems | Zigbee |
| Radio frequency bidirectional | Yes |
| Mounting method | Built-in installation |
| With bus connection | No |
| Bus module detachable | No |
| Local operation/hand operation | Yes |
| With LED indication | Yes |
| Number of inputs | 5 |
| Switching current (resistive) | 1 A |
| Max. switching power | 200 W |
| Max. number of venetian-blind outputs | 1 |
| With switch function | Yes |
| Type of current | AC |
| Degree of protection (IP) | IP20 |
| Width | 94 mm |
| Height | 56 mm |
| Depth | 29 mm |
| Built-in depth | 29 mm |
| degree of impact strength (IK) | IK04 |
| Operating / setting temperature | 5-45 °C |
| Storage temperature | 0-45 °C |
|---|---|
| Nominal voltage | 100-240 V |
| Frequency | 50-60 Hz |
| Standby consumption | 2.1 mA |
| Mandatory neutral | Yes |
| Terminal marking indication | Yes |
| Stress test conformity (1000V) | No |
| Colour | Black |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Connection type | Screwed terminal |
| Number of terminals | 5 |
| Terminals capacity | 1.5-2.5 mm² |
| Contains Batteries and/or Accumulator | No |
| Connected object | Yes |
| Operating method | Zigbee |
| Application store for download | App Store , Google Play Store |
| With voice command | Yes |
| Programmable | Yes |
| Interoperable connection Protocol | Yes |
| Connectable by Internet box | Yes |
| Compatible voice assistants | Google Assistant |
| Application name | Home + Control |
| Product use function | Shutter management |
| Programming way | Smartphone apps |
