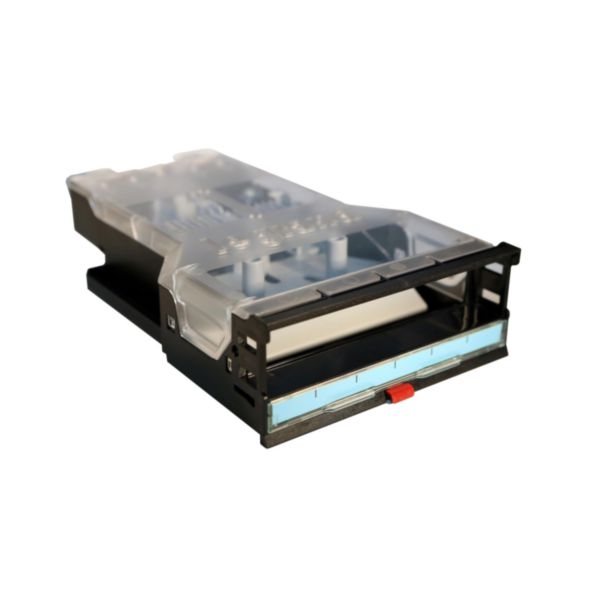

Fibre optic splice cassette for High Density and modular fibre optic panel

LCS³ LEGRAND

Fibre optic splice cassette for High Density and modular fibre optic panel

REF. 032141 EAN oznaka. 3414970962126

This fibre optic splice cassette accomodates and protects the sleeves of spliced pigtails. To be equipped with a large choice blocks (LC, LC APC, SC, SC APC, ST), it's the perfect solution for short deadlines and flexible answers.

Naloži seznam izdelkov
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό

Splošni opis:

This fibre optic splice cassette accomodates and protects the sleeves of spliced pigtails. To be equipped with a large choice blocks (LC, LC APC, SC, SC APC, ST), it's the perfect solution for short deadlines and flexible answers.

Značilnosti izdelka:
  • Sliding cassette with push button for fast extraction of the cassette from the front.
  • Takes any modular fibre optic block (LC, LC APC, SC, SC APC, ST, MTP)
  • Supplied with removable pigtail holders and 2 PG11 glands.
  • With coiling area
  • Transparent cover for a direct view of the terminations inside the cassette.

Prednosti izdelka

Prednosti montaže:
  • Fast automatic extraction at the front
Prednosti uporabe:
  • Fast automatic individuak extraction at the front, easy to use, giving better accessibility to the patchcords when move, adds & changes.

Tehnične značilnosti

With splice holder Yes
Suitable for Other
Length 185 mm
Width 110.4 mm
Height 43.7 mm
Mounting method Other

Dokumentacija

6 Dokumenti
Tehnični list
S000110252FR-03.pdf pdf (2.96 Mo)
Tehnični list
S000110251EN-04.pdf pdf (4.67 Mo)
Tehnični list
S000110251FR-04.pdf pdf (4.67 Mo)
Navodila za uporabo
LE12090AC.pdf pdf (7.89 Mo)
Navodila za uporabo
LE11988AC.pdf pdf (12.38 Mo)
Tehnični list
S000110252EN-03.pdf pdf (3.04 Mo)
1 Dokumenti
Stran v katalogu
ex223001_1001.pdf pdf (0.08 Mo)
2 Dokumenti
BIM datoteka
BIM datoteka
