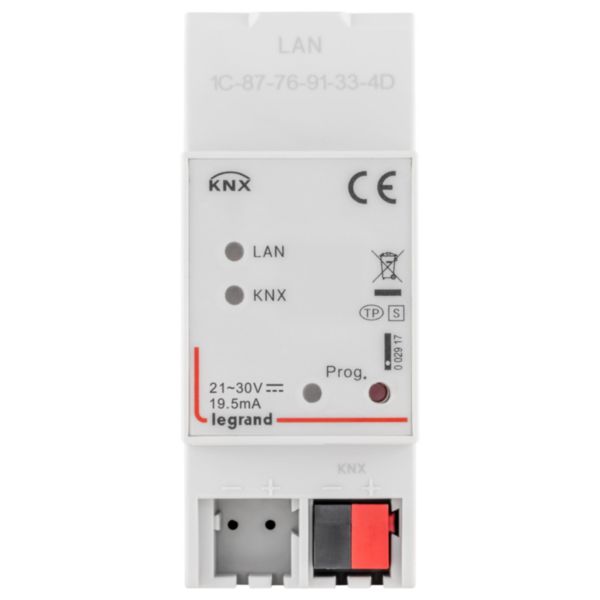

KNX-IP router
Legrand
KNX-IP router
REF. 002917
EAN oznaka.
3414972816175
can act as main line or backbone coupler. Links a diffent KNX network to each other via the IP infrastructure
Deli
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό
Tehnične značilnosti
| Standby consumption | 19.5 |
|---|---|
| Bus system KNX | Yes |
| Bus system KNX-RF (Radio Frequency) | No |
| Bus system radio frequency | No |
| Bus system LON | No |
| Bus system Powernet | No |
| Other bus systems | None |
| Radio frequency bidirectional | No |
| Model | Interface KNX Powernet |
| Mounting method | DRA (DIN-rail adapter) |
| Width in number of modular spacings | 36 |
| Demounting protection | Yes |
| With LED indication | Yes |
| Updateable | Yes |
| Operating voltage | 21-30 V |
| Voltage type | DC |
| Protocol | TCP/IP |
| Provider dependent | Yes |
| Visualization | Yes |
| Web-Server | No |
| Radio interface | No |
|---|---|
| IR interface | No |
| Degree of protection (IP) | IP20 |
| Width | 36 mm |
| Height | 64.1 mm |
| Depth | 90 mm |
| degree of impact strength (IK) | IK04 |
| Operating / setting temperature | -5-45 °C |
| Storage temperature | -25-55 °C |
| Supply current | 0.0155-0.0195 A |
| Terminal marking indication | Yes |
| Type of load | Not applicable |
| Halogen free | Yes |
| Connection type | Other |
| Label space/information surface | No |
| Fitted with USB plug | No |
| Contains Batteries and/or Accumulator | No |
| Addressable | Yes |
| Connected object | No |
