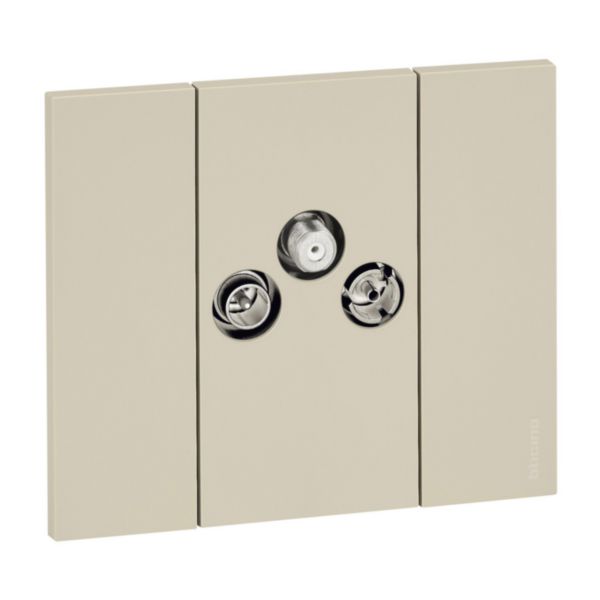

Living Now - Star demixed TV-R-SAT sockets for DVB-T, 2 modules
Living Now
BTICINO
Living Now - Star demixed TV-R-SAT sockets for DVB-T, 2 modules
REF. BT-K4210M2D
EAN oznaka.
8005543644645
Deli
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό
Tehnične značilnosti
| Model | Loop-through socket |
|---|---|
| Type of socket outlet | TV/RD/SAT |
| Mounting method | Module frame |
| Number of modules (module system) | 2 |
| Cover | Central cover plate |
| Tap loss at 860 MHz | 1.5 dB |
| Tap loss at 2150 MHz | 2 dB |
| Number of outlets | 3 |
| Suitable for cable modem | No |
| TV frequency band | 5-862 MHz |
| Suitable for remote power supply | No |
| Radio frequency band | 87.5-108 MHz |
| SAT frequency band | 950-2400 MHz |
| Type of fastening | Snap mounting (engagement) |
| Colour | Black |
| RAL-number (similar) | 7015 |
| Surface protection | Untreated |
|---|---|
| Surface finishing | Matt |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Degree of protection (IP) | IP20 |
| degree of impact strength (IK) | IK04 |
| Device width | 45 mm |
| Device height | 45 mm |
| Device depth | 40 mm |
| Min. depth of built-in installation box | 37.5 mm |
| Built-in depth | 27.5 mm |
| Operating / setting temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Terminal marking indication | No |
