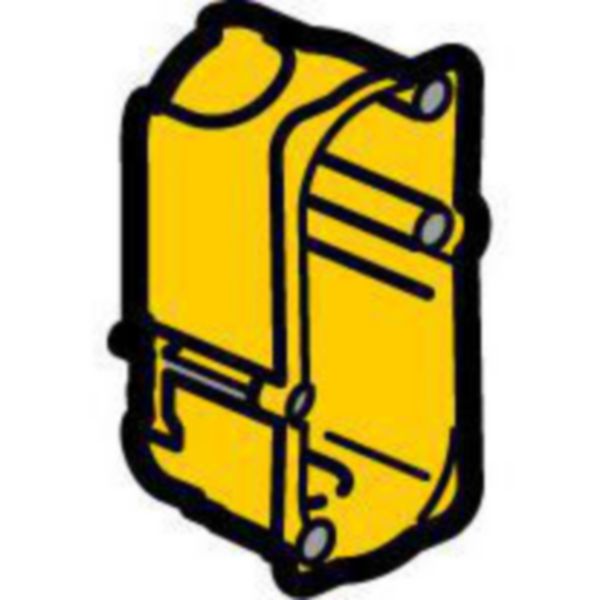

Mosaic™ - Flush mounting box Batibox - 1 gang for 1 module - dry partitions
Mosaic™
LEGRAND
Mosaic™ - Flush mounting box Batibox - 1 gang for 1 module - dry partitions
REF. 080040
EAN oznaka.
3245060800406
Deli
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό
Tehnične značilnosti
| Mounting method | Hollow wall |
|---|---|
| Shape | Oval |
| Construction type | Device connection box (round/square) |
| Model | Single |
| Provided with revolving ring | No |
| Couplable | No |
| Equipped with | None |
| Diameter | 32 mm |
| Length | 76.5 mm |
| Width | 35.5 mm |
| Inner depth | 40 mm |
| For number of electric fittings | 1 |
| Mounting switching equipment | Screw or spread out |
| With screws | Yes |
| Housing feed-through by break-out opening | Yes |
| Housing feed-through by seal membrane | No |
| Housing feed-through by nozzle | No |
| Housing feed-through by step membrane | No |
| For tube diameter | Other |
| Suitable for cable diameter | 16-20 mm |
| Pipe locking | No |
| Pipe locking optional | No |
| Inlet from the rear | Yes |
|---|---|
| Number of inlets | 2 |
| Material | Plastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Colour | Yellow |
| Degree of protection (IP) | IP20 |
| Cover model | None |
| Cover attachment | Other |
| Sealable | No |
| Circuit integrity | None |
| With screening | No |
| Air tight | No |
| Number of poles of the clamp | 0 |
| Clamp position fixed | No |
| Luminaire hook mounting | No |
| Nozzle | None |
| Special application | None |
| degree of impact strength (IK) | IK04 |
| Operating / setting temperature | -5-40 °C |
| Storage temperature | -5-60 °C |
