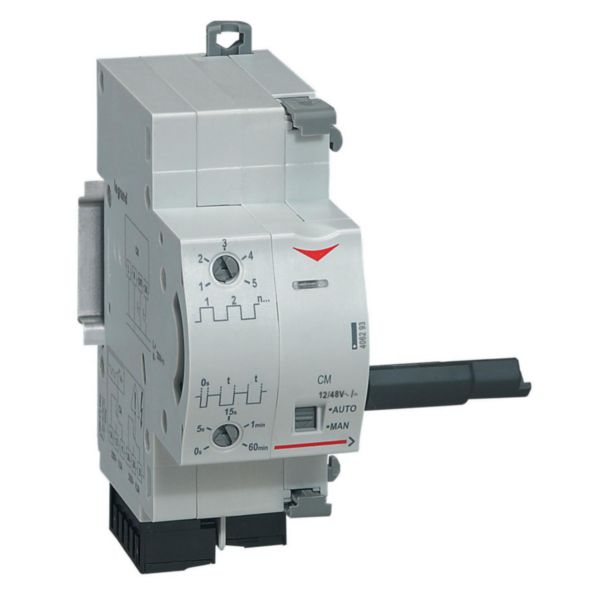

Motorised control DX³ - 24 to 48 V~/= - automatic resetting - 2 modules

LEGRAND

Motorised control DX³ - 24 to 48 V~/= - automatic resetting - 2 modules

REF. 406293 EAN oznaka. 3245064062930
Naloži seznam izdelkov
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό
Značilnosti izdelka:
  • Signalling, remote tripping auxiliaries and motorised controls DX³
  • Motorised controls - For remote control (opening and closing) of their associated device. - To fit on the Left - hand side of DX³ and TX³ devices - For MCBs, RCBOs, RCCBs and remote trip isolating switches (from 1P to 4P) - Can take one control auxiliary and one signalling auxiliary. - No tool required for joining together the motorised control and the maIn = evice ON/OFF + automatic resetting function - for 1 module / pole devices (In =p to 63 A) - Automatically resets the device to which it is associated, thus ensuring continuity of service - Control voltage : 24 - 48 V~/ = - Number of modules : 2

Tehnične značilnosti

Device fitting Universal
Function Remote turn-on switch
Width in number of modular spacings 2
Number of contacts as normally open contact 0
Number of contacts as normally closed contact 0
Number of contacts as change-over contact 1
Number of fault-signal switches 0
Rated switch current 0.2 A
Rated voltage 48 V
Voltage type AC/DC
With auto test for earth leakage function No
Suitable for max. number of poles main contact unit (total) 4
Suitable for max. current main contact unit 125 A
Width 52.4 mm
Height 98.7 mm
Depth 74.3 mm

Dokumentacija

3 Dokumenti
Navodila za uporabo
N0264H.pdf pdf (2.53 Mo)
Tehnični list
F01286FR-01.pdf pdf (0.63 Mo)
Tehnični list
F01286EN-01.pdf pdf (0.59 Mo)
1 Dokumenti
Stran v katalogu
ex223001_0074.pdf pdf (0.07 Mo)
1 Dokumenti
3D Autocad
406295.dwg dwg (0.14 Mo)
