Optic Drawer angled and modular 19 inch 1U to be equipped

LCS³ LEGRAND

Optic Drawer angled and modular 19 inch 1U to be equipped

REF. 032101 EAN oznaka. 3414971420212

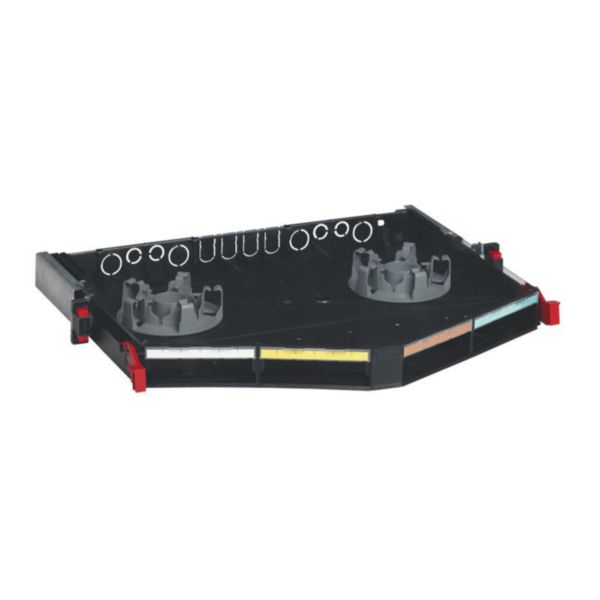

This drawer accomodates fibre optic terminations with modularity thanks to a large choice of connectors blocks. Its angled shape enables to save space in cabinets with cords management on sides​.

Naloži seznam izdelkov
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό

Splošni opis:

This drawer accomodates fibre optic terminations with modularity thanks to a large choice of connectors blocks. Its angled shape enables to save space in cabinets with cords management on sides​.

Značilnosti izdelka:
  • Angled shape for cords management on sides
  • To be equipped with 4 fibre optic blocks to reach up to 96 LC, 48 SC or 24 ST
  • 20° tilting for good internal view and access. End of travel stop.
  • Supplied with 2 coiling kits, 2 cable glands and numbered labels
  • Receive stackable pigtail cassette accessory up to 24 fibres.
Priporočila / omejitve
  • To limit mechanical constraints on cables at drawer back, we recommand to use minimum 600mm depth cabinets. If less, you can use fibre panel ref. 032140.

Prednosti izdelka

Prednosti montaže:
  • This drawer is equipped with 19 inch quick fixing solution for automatic mounting (no screws required) and grounding. It offers 8 cable inputs, with dedicated space for direct clipping of fan-out if you choose preterminated trunks.
Prednosti uporabe:
  • With this drawer, the space in the cabinet is optimized thanks to 1U saving with cords management on sides​. Moreover this drawer offers scalability : easy move, add and change of blocks as you need.
Edinstvene značilnosti:
  • Modular : Large choice of fibre optic blocks (LC, LC APC, SC, SC APC, ST, MTP) and many possible combinations, even mixing fibre and copper with the specific copper block for fibre optic drawer.
  • With 19 inch quick fixing solution for automatic mounting (no screws required) and automatic grounding on 19'' uprigth with conductive surface

Tehnične značilnosti

Suitable for number of couplings/adaptors 96
Suitable for number of module inserts 4
With number of couplings/adaptors 0
With housing Yes
With pigtails No
Fibre type Other
APC-version Yes
Type of connector external Other
Type of connector interior Other
Colour Black
RAL-number 9005
Mounting method 482.6 mm (19 inch) mounting
Number of height units 1
Height 43.8 mm
Width 482.5 mm
Depth 408.6 mm
Operating / setting temperature -10-60 °C
Storage temperature -10-60 °C
Terminal marking indication Yes
Prewired No
Label space/information surface Yes
Fitted with door or cover Yes
Cable support Other

Dokumentacija

4 Dokumenti
Tehnični list
S000099289EN-06.pdf pdf (3.85 Mo)
Navodila za uporabo
LE09845AF.pdf pdf (17.37 Mo)
Navodila za uporabo
LE09845AG.pdf pdf (16.88 Mo)
Tehnični list
S000099289FR-06.pdf pdf (3.84 Mo)
1 Dokumenti
Stran v katalogu
ex223001_1000.pdf pdf (0.13 Mo)
