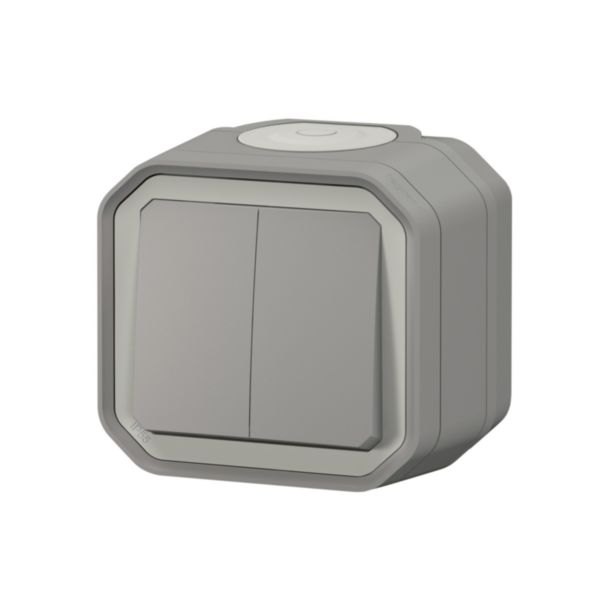

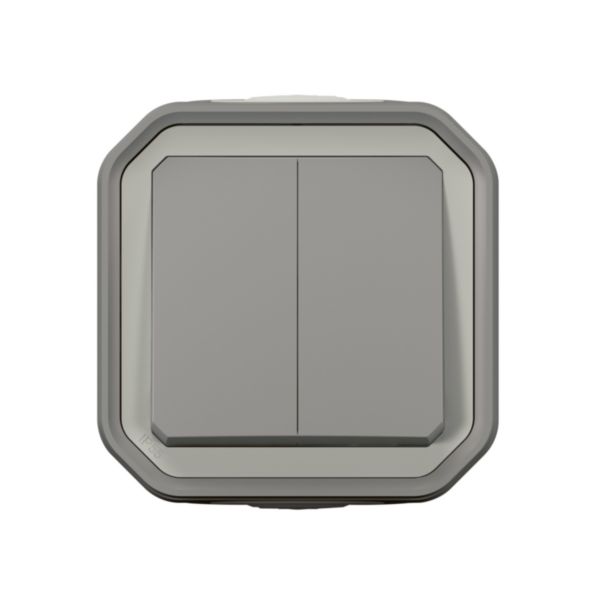

Name: Plexo™ - 2 gang 2-way switch or 2 gang push button - Grey - surface
SKU: 069715L

Plexo™ - 2 gang 2-way switch or 2 gang push button - Grey - surface

Plexo™ LEGRAND

Plexo™ - 2 gang 2-way switch or 2 gang push button - Grey - surface

REF. 069715L EAN oznaka. 3414971881891

Primerjaj Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό

Number of rockers	2
Method of operation	Rocker/button
Mounting direction	Horizontal
Type of fastening	Mounting with screw
With lighting	No
Mounting method	Surface mounted
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Surface protection	Untreated
Surface finishing	Matt
Colour	Grey
RAL-number (similar)	7046
Transparent	No
Suitable for degree of protection (IP)	IP55
Nominal voltage	250 V

Rated current	10 A
Device width	82 mm
Device height	84.5 mm
Device depth	61 mm
degree of impact strength (IK)	IK08
Operating / setting temperature	-10-40 °C
Storage temperature	-25-60 °C
Voltage type	AC
Frequency	50-60 Hz
Connection type	Push-in clamp
Terminals capacity	1.5-2.5 mm²
Cable nature for connection	Flexible or rigid
Label space/information surface	No
Fitted with USB plug	No
Tube diameter for wall mounted product	16-25 mm

Plexo™ - 2 gang 2-way switch or 2 gang push button - Grey - surface
