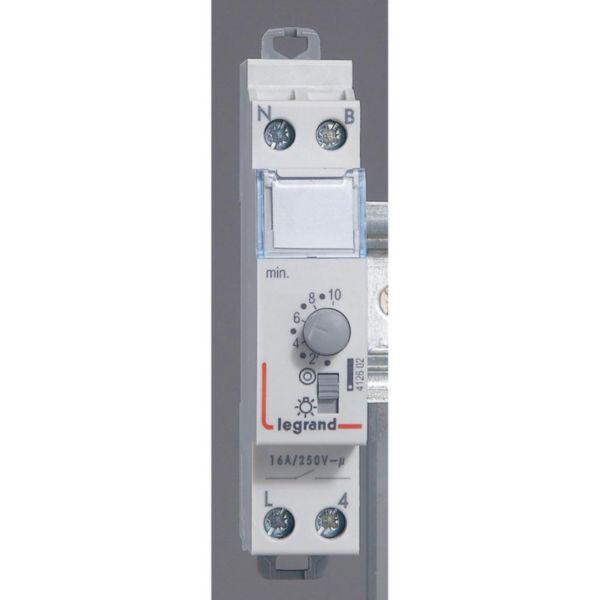

Time-lag switch - 16 A - 230 V~ - 50/60 Hz - 1 mod
LEGRAND
Time-lag switch - 16 A - 230 V~ - 50/60 Hz - 1 mod
REF. 412602
EAN oznaka.
3245064126021
Deli
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό
Tehnične značilnosti
| Function | Electronic |
|---|---|
| Mounting method | DIN rail |
| Width in number of modular spacings | 1 |
| Built-in depth | 70 mm |
| Number of contacts as normally open contact | 1 |
| Control voltage 1 | 230-230 V |
| Type of control voltage 1 | AC |
| Frequency control voltage 1 | 50-60 Hz |
| Rated switch current | 16 A |
| Max. switching current (cos phi = 0.6) | 13 A |
| Release-delay | 0.5-10 min |
| Push button glow-lamp current | 50 mA |
| Wiring system | 3 and 4 wire configuration |
| Pre-warning of switching-off | None |
|---|---|
| Current surge function selectable | No |
| Repetitive | Repetitive |
| Supply voltage | 250-250 V |
| Voltage type (supply voltage) | AC |
| Max. incandescent lamp load | 2000 W |
| Max. load fluorescent lamp | 1000 VA |
| Max. load fluorescent lamp (Duo circuit) | 1000 VA |
| Max. load fluorescent lamp (parallel compensated) | 120 VA |
| Width | 17.7 mm |
| Height | 94.8 mm |
| Depth | 74.5 mm |
